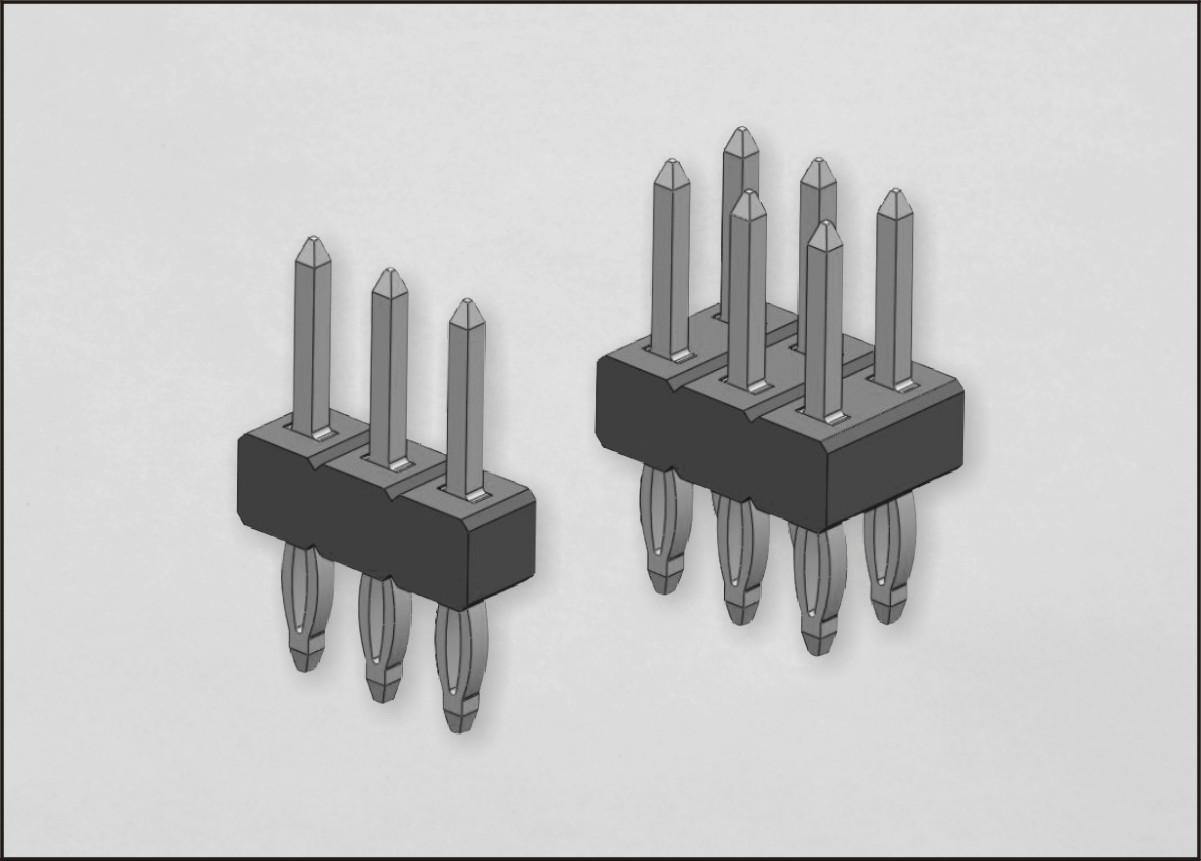

143PF-N / 144PF-N series Pin- Header-Press-Fit- Single / Double row-2.54mm Pitch B-Type

Technical data:

Insulator Material: High Temperature      Thermoplastic,UL 94V-0

Contact: Copper alloy

Plating: Au or Sn over Nickel

Current Rating: 3 Amp

Contact resistance: 20 milliohms Max.

Insulator resistance: 1000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40 ℃ to +105 ℃.

Max. processing Temp: 230 ℃ for 30-60 seconds.    260 ℃ for 10 seconds.

Mates with: 157,158,159,160,162,342,623,624,625
