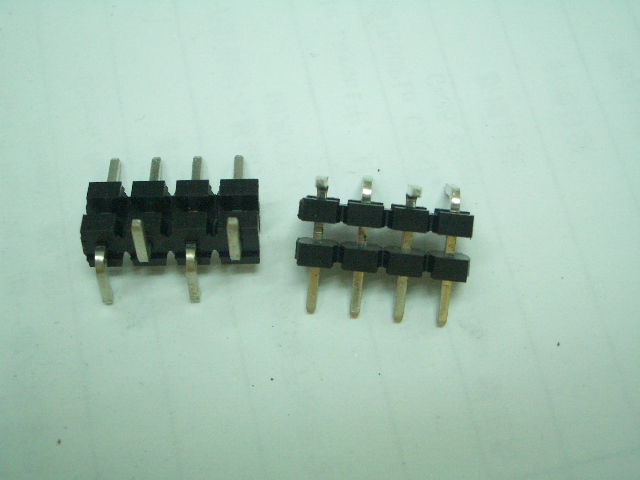

538A series Power Male Headers 5.08mm pitch, Vertical SMT Type

Technical data:
Insulator Material:Thermoplastic,UL 94V-0

Contact: 1.14 x 1.14mm

Contact  Material: copper alloy

Plating: Tin or Au plated over nickle,Lead free

Current Rating: 7.9 Amp 30℃ Temperature Rise

Insulator resistance: 1000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -40℃ to +105℃.

Max. processing Temp: 230℃ for 30-60 seconds.    260℃ for 10 seconds.

Mates with: Pitch 5.08mm,538C,538D
