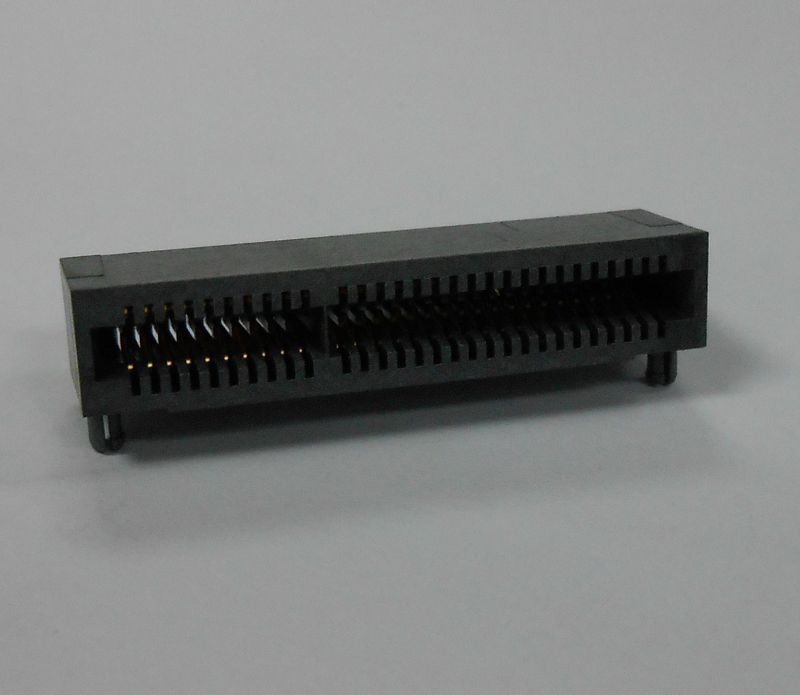

866 - High Speed Connector - High Speed Mini-Edge Card Socket Pitch 1.00mm Right Angle SMT Type Profile 6.80mm
Technical Data:
Insulator Material: High Temperature
Thermoplastic,LCP,UL 94V-0
Contact: stamped and formed,Phosphor Bronze
Plating: Au or Sn over Nickel
Current Rating: 1.5A @ 80℃
Contact resistance: 20 milliohms Max.
Insulator resistance: 500 Megohms min.
Dielectric withstanding: AC 500V for 1 Minute.
Operating Temperature: -55℃ to +125℃
Max. processing Temp: 230℃ for 30-60 seconds.
260℃ for 10 seconds.
Mates with: 1.57mm Card
