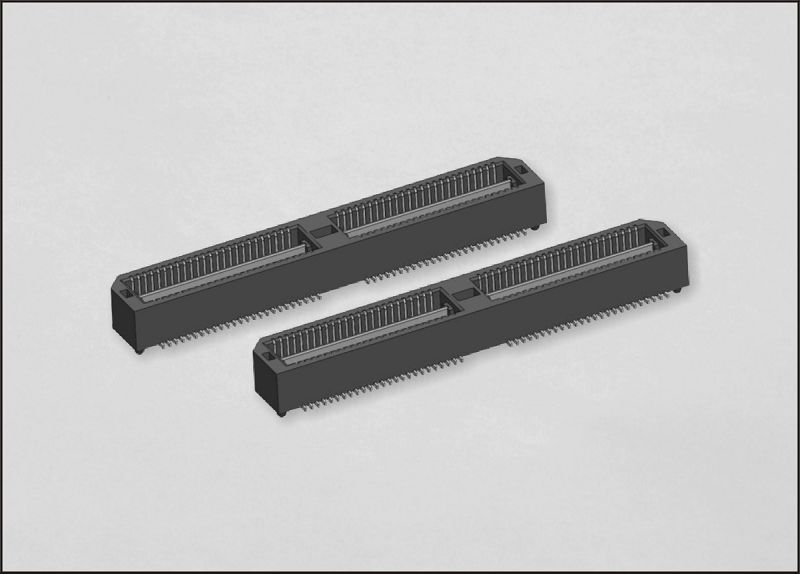

867 - High Speed Connector - High Speed Double row Male Headers 0.635mm Pitch SMT A Type

Technical Data:

Insulator Material: High Temperature

Thermoplastic,LCP,UL 94V-0

Contact: stamped and formed,Phosphor Bronze

Plating: Au or Sn over Nickel

Current Rating: 1.1A @ 30℃ Temperature Rise

Ground Plane Rating: 7.8A @ 30℃ Temperature Rise

Contact resistance: 20 milliohms Max.

Insulator resistance: 500 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -55℃ to +125℃

Max. processing Temp: 230℃ for 30-60 seconds.

                                       260℃ for 10 seconds.

Mates with: Pitch 0.635mm,868 series
