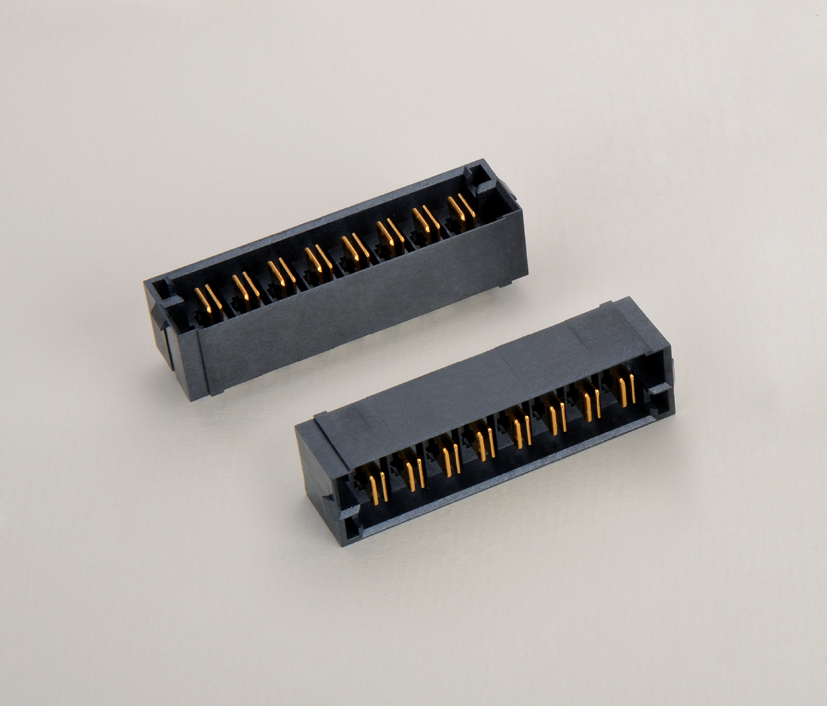

921 series 5.00mm Pitch Mini-Power Terminal,Vertical Type

Technical Data:

Insulator Material: High Temperature
                                Thermoplastic,LCP,UL 94V-0

Contact Material: stamped and formed,Copper Alloy

Clip Material: stamped and formed,Copper Alloy

Contact Plating: Au or Tin over Nickel

Clip Plating: Matt Sn over Nickel

Current Rating: 24.7A

Voltage Rating: 600VAC/848VDC

Operating Temperature: -55℃ to +105℃ with Tin
                                           -55℃ to +125℃ with Gold

Max. processing Temp: 230℃ for 30-60 seconds.
                                          260℃ for 10 seconds.

Mates with: 920
