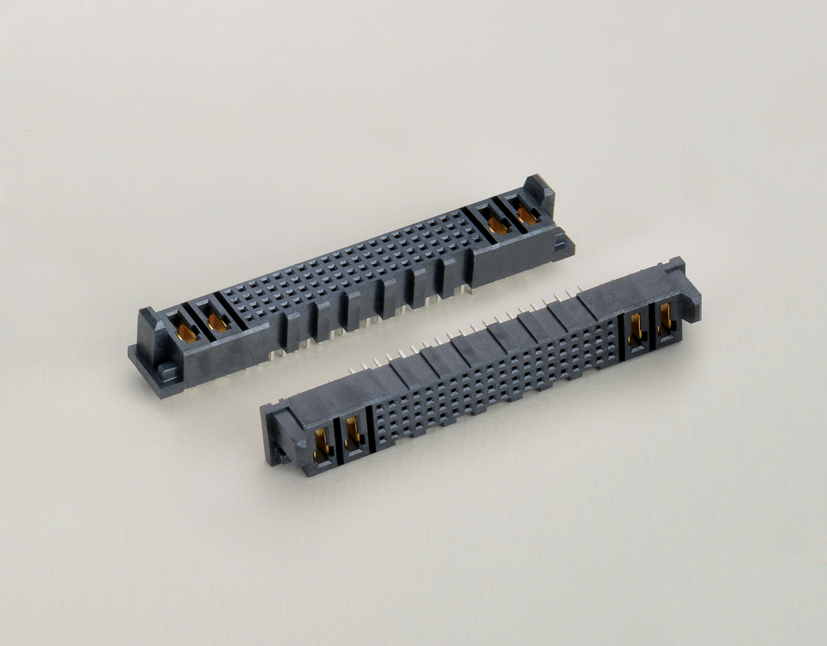

922 series 5.00mm Pitch Mini-Power W/Signal Socket,Vertical Type

Technical Data:

Insulator Material: High Temperature
                                Thermoplastic,LCP,UL 94V-0

Contact Material: Phosphor Brzone for signal contact

                               Copper Alloy for Power contact

Clip Material: stamped and formed,Copper Alloy

Contact Plating: Au or Tin over Nickel

Clip Plating: Matt Sn over Nickel

Current Rating: Power:24.7A

                          Signal:1A

Voltage Rating: Power:600VAC/848VDC

                          Signal:300VAC/424VDC

Operating Temperature: -55℃ to +105℃


Max. processing Temp: 230℃ for 30-60 seconds.
                                          260℃ for 10 seconds.

Mates with: 923
