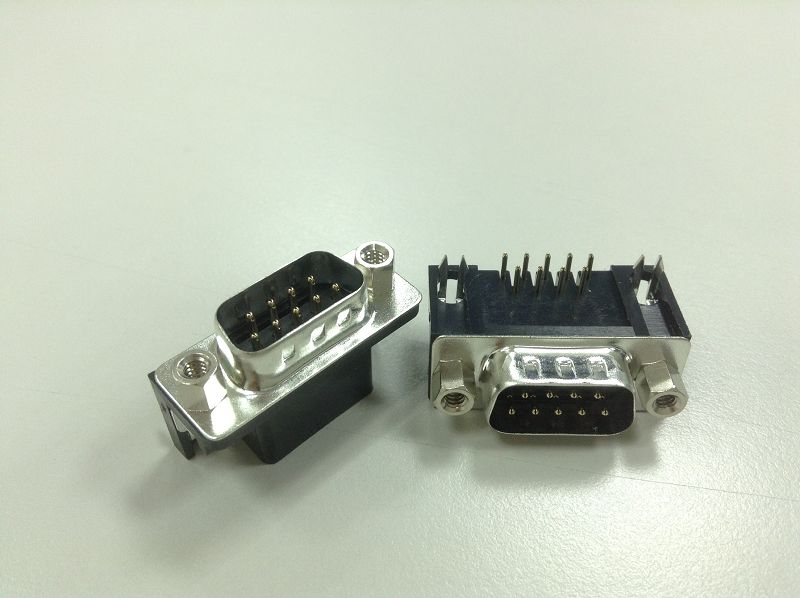

    107 series Economy-Euro-Type with stamped Contacts D-subminiatur Connector with Dip-Solder contact 90° R.A

    Technical data:
    Material shell: Steel tin coat over nickel
    Insulator: Thermoplastic polyester
    Buming properties: self-extinguishing rated 94V-0
    Contact: Cooper alloy
    Contact surface: gold plated voer nickel
    Operating Temperature: -55℃ to + 105℃
    Electrical data:
    Current rating:     5A
    Working voltage: 125VAC
    Test voltage: 1000V/50hz
    Contact resistance: 10mOhm
    Insulator resistance: 1010Ohm min. 500VDC
    Mating cycles: Class 3=min. 50cycles
