IDC Header
-

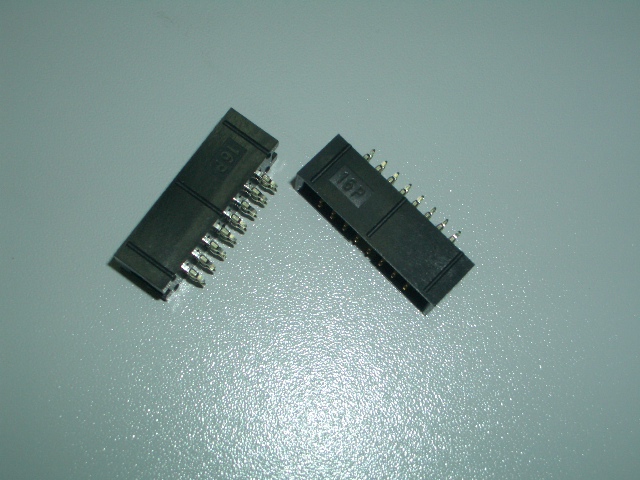

137PF series 2.54mm Shrouded header press fit Type
Technical data:
Insulator Material: High Temperature Thermoplastic,UL 94V-0Contact: 0.64 x
Contact Material: copper alloy
Plating: Au or Sn over Nickle
Current Rating: 3 Amp
Insulator resistance: 5000 Megohms min.
Dielectric withstanding: AC 500V for 1 Minute.
Operating Temperature:
Max. processing Temp: 230 ℃ for 30-60 seconds. 260 ℃ for 10 seconds.
Mates with: 141,157,159,160,162,342,348,349,622,624
-
137 series 2.54mm Shrouded header with straight / angled pins & SMT Type
Technical data:
Insulator Material: High Temperature Thermoplastic,UL 94V-0Contact: 0.64 x
Contact Material: copper alloy
Plating: Au or Sn over Nickle
Current Rating: 3 Amp
Insulator resistance: 5000 Megohms min.
Dielectric withstanding: AC 500V for 1 Minute.
Operating Temperature:
Max. processing Temp: 230 ℃ for 30-60 seconds. 260 ℃for 10 seconds.
Mates with: 141,157,159,160,162,342,348,349,622,624
-
138 series Ejector Header Dip & SMT Type Pitch 2.54mm,High Temperature Thermoplastic
Technical data:
Insulator Material: High TemperatureThermoplastic,PA6T UL 94V-0
Contact: 0.64 x
Contact Material: copper alloy
Plating: Au or Sn over Nickle
Current Rating: 3 Amp
Insulator resistance: 5000 Megohms min.
Dielectric withstanding: AC 500V for 1 Minute.
Operating Temperature:
Max. processing Temp:230℃ for 30-60 seconds.
260℃ for 10 seconds.
Mates with: 141
-
138PF series Ejector Header press fit Type Pitch 2.54mm
Technical data:
Insulator Material: Thermoplastic,UL 94V-0Contact: 0.64 x
Contact Material: copper alloy
Plating: Au or Sn over Nickle
Current Rating: 3 Amp
Insulator resistance: 5000 Megohms min.
Dielectric withstanding: AC 500V for 1 Minute.
Operating Temperature:
Max. processing Temp: 230 ℃ for 30-60 seconds. (Only for SMT type)260 ℃ for 10 seconds.
Mates with: 141
-
138-D series Stacking Ejector Header Dip Type, pitch 2.54mm
Technical data:
Insulator Material: High Temperature Thermoplastic,UL 94V-0Contact: 0.64 x
Contact Material: copper alloy
Plating: Au or Sn over Nickle
Current Rating: 3 Amp
Insulator resistance: 5000 Megohms min.
Dielectric withstanding: AC 500V for 1 Minute.
Operating Temperature:
-
378-1 series Low Profile header 1.27mm x 2.54mm
Technical data:
Insulator Material: High Temperature Thermoplastic,UL 94V-0Contact: 0.46 x
Contact Material: copper alloy
Plating: Au or Sn over Nickle
Current Rating: 1 Amp
Insulator resistance: 500 Megohms min.
Dielectric withstanding: AC 500V for 1 Minute.
Operating Temperature:
Max. processing Temp: 230 ℃ for 30-60 seconds. 260 ℃ for 10 seconds.
Mates with: 377
-
378 series Low Profile header 1.27mm x 2.54mm
Technical data:
Insulator Material: High Temperature Thermoplastic,UL 94V-0Contact: 0.46 x
Contact Material: copper alloy
Plating: Au or Sn over Nickle
Current Rating: 1 Amp
Insulator resistance: 500 Megohms min.
Dielectric withstanding: AC 500V for 1 Minute.
Operating Temperature:
Max. processing Temp: 230 ℃ for 30-60 seconds. 260 ℃for 10 seconds.
Mates with: 377
-
632BN series Ejeator Header Dip/SMT Type, pitch 2.00mm
Technical data:
Insulator Material: High Temperature Thermoplastic,UL 94V-0Contact: 0.50 x
Contact Material: copper alloy
Plating: Au or Sn over Nickle
Current Rating: 1 Amp
Insulator resistance: 500 Megohms min.
Dielectric withstanding: AC 500V for 1 Minute.
Operating Temperature:
Max. processing Temp: 230 ℃ for 30-60 seconds. 260 ℃for 10 seconds.
-
635 series Low Profile Header with Straight & Angle Pins 2.0mm pitch
nsulator Material: High Temperature Thermoplastic,UL 94V-0
Contact: 0.50 x
Contact Material: copper alloy
Plating: Au or Sn over Nickle
Current Rating: 1 Amp
Insulator resistance: 500 Megohms min.
Dielectric withstanding: AC 500V for 1 Minute.
Operating Temperature:
Max. processing Temp: 230 ℃ for 30-60 seconds. 260 ℃for 10 seconds.
Mates with: 343,316,618
