    138-D series Stacking Ejector Header Dip Type, pitch 2.54mm

    Technical data:
    Insulator Material:     High Temperature      Thermoplastic,UL 94V-0

    Contact: 0.64 x 0.64mm

    Contact Material: copper alloy

    Plating: Au or Sn over Nickle

    Current Rating: 3 Amp

    Insulator resistance: 5000 Megohms min.

    Dielectric withstanding: AC 500V for 1 Minute.

    Operating Temperature: -40 ℃to + 105 ℃.

    View customer Drawing (Pdf)

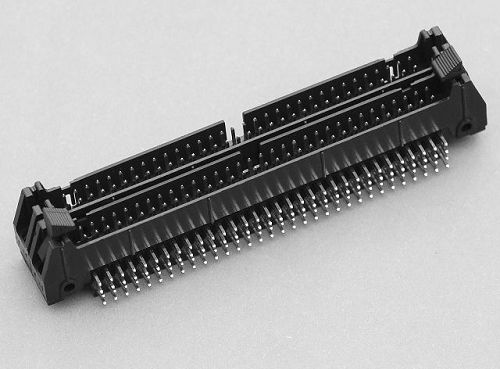

138-D series Stacking Ejector Header Dip Type, pitch 2.54mm

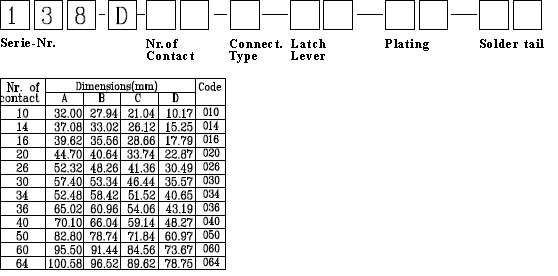

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 138-D
Nr. of Contact
Connector Type 2: Dip solder 90°
Latch lever options
Plating Option
Solder tail 35: 3.5mm
