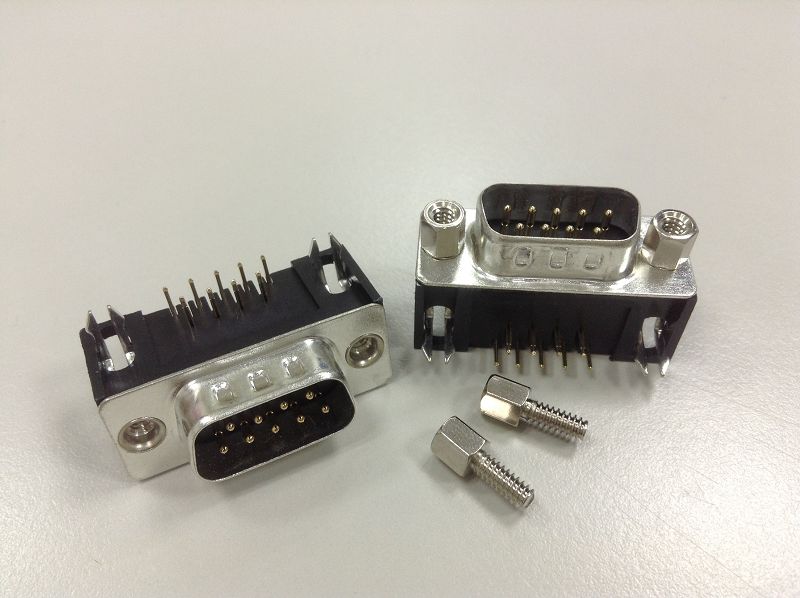

• 111 series Economy-US-type with Stamped Contacts D-subminiatur connector with Dip-solder contact 90° R.A.

    111 series Economy-US-type with Stamped Contacts D-subminiatur connector with Dip-solder contact 90° R.A.

    Technical data:
    Material shell: steel tin coat over nickel
    Insulator: Thermoplastic polyester
    Buming properties: self-extinguishing rated 94V-0
    Contact: Cooper alloy
    Contact surface: gold plated voer nickel
    Operating Temperature: -55℃ to + 105℃
    Electrical data:
    Current rating: 5A
    Working voltage: 125VAC
    Test voltage: 1000V/50hz
    Contact resistance: 10mOhm
    Insulator resistance: 1010Ohm min. 500VDC
    Mating cycles: Class 3=min. 50cycles

    View customer Drawing (Pdf)

111 series Economy-US-type with Stamped Contacts D-subminiatur connector with Dip-solder contact 90° R.A.

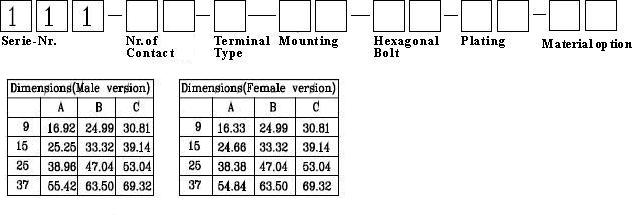

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 111
Nr. of Contact
Terminal Type
Mounting option
Hexagonal bolt option
Plating Option
Material option
