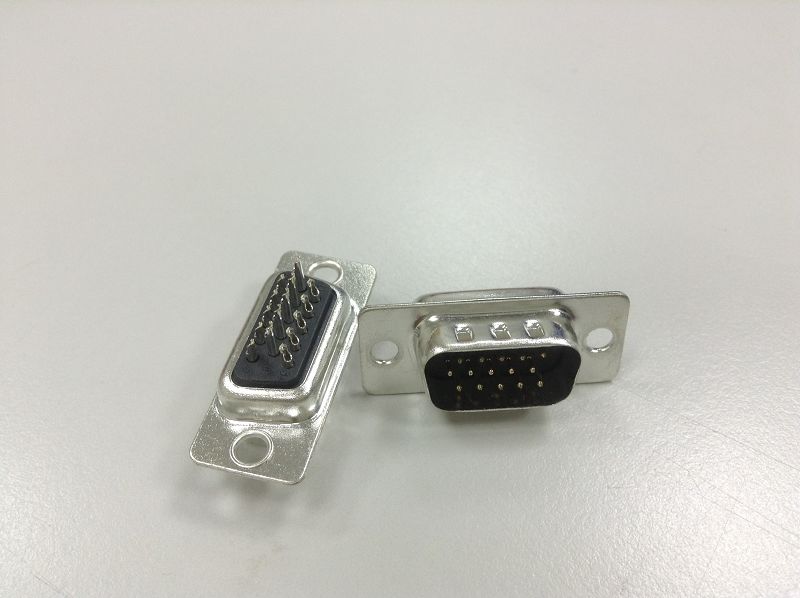

    108 series D-sub Connector High-Density Solder Cup

    Technical data:
    Material and finish:
    Shell:     steel tin plating or nickel plating
    Insulator: Thermoplastic polyester
                         self-extinguishing rated 94V-0
    Contact: Copper alloy
    Contact surface: gold plated voer nickel
    Operating Temperature: -55℃ to + 105℃
    Electrical data:
    Current rating: 5A
    Contact resistance: 30Mohm Max. at DC 100 Max
    Insulator resistance: 1000Mohm Min. at DC 500V
    Voltage: AC 1000V for 1minute

    View customer Drawing (Pdf)

108 series D-sub Connector High-Density Solder Cup

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 108
Nr. of Contact
Terminal Type
Shell
bolt option
Mounting method
Plating Option
Insulator color
