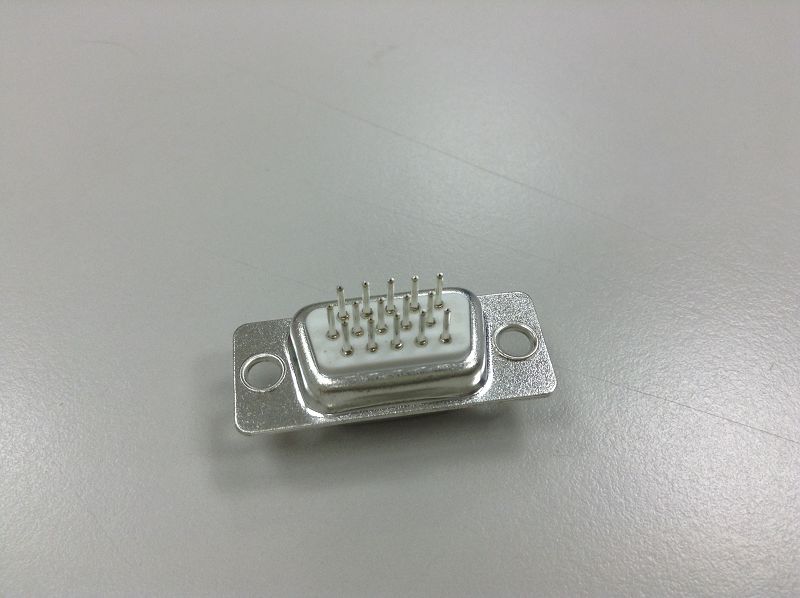

    109 series D-sub Connector High-Density Dip Solder Straight

    Technical data:
    Material and finish:
    Shell:     steel tin coat over nickel
    Insulator: Thermoplastic polyester
                        self-extinguishing rated 94V-0
    Contact: Copper alloy
    Contact surface: gold plated voer nickel
    Operating Temperature: -55℃ to + 105℃
    Electrical data:
    Current rating: 5A
    Contact resistance: 30Mohm Max. at DC 100Ma
    Insulator resistance: 1000Mohm Min. at DC 500V
    Voltage: AC 1000V for 1 minute

    View customer Drawing (Pdf1) View customer Drawing (Pdf2)

109 series D-sub Connector High-Density Dip Solder Straight

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Serie-Nr. 109
Nr. of Contact
Terminal Type
Shell
Mounting method
Hexagonal bolt option
Plating Option
Insulator color
