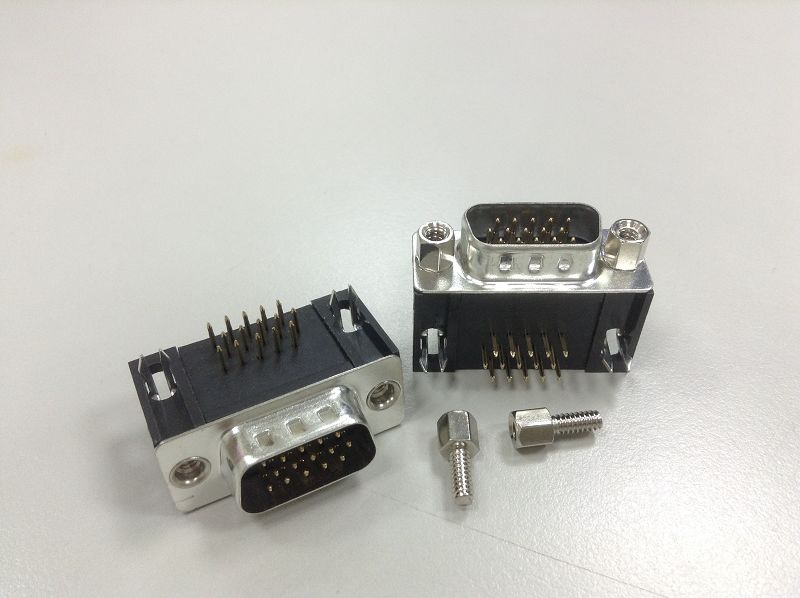

• 110 series High-Density-D-subminiatur-Connector with Dip-Solder Contact 90° R. A. Economy type with stamped contacts

    110 series High-Density-D-subminiatur-Connector with Dip-Solder Contact 90° R. A. Economy type with stamped contacts

    Technical data:
    Material shell:     Steel tin-coat over nikel
    Insulator: Thermoplastic polyester
    Burning properties: Self extinguishing rated
                                          UL94V0
    Contact: Copper alloy
    Contact surface: Gold over nickel
    Operating temperature: -65℃ to + 105℃
    Electrical data:
    Current rating:     5A
    Working voltage: 125V AC
    Test voltage: 1000V/50HZ
    Contact resistance: 10mohm
    Insulation resistance: 1010Mohm min. 500V DC
    Insulation resistance: 1000Mohm min. 500V DC

    View customer Drawing (Pdf1) View customer Drawing (Pdf2)

110 series High-Density-D-subminiatur-Connector with Dip-Solder Contact 90° R. A. Economy type with stamped contacts

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

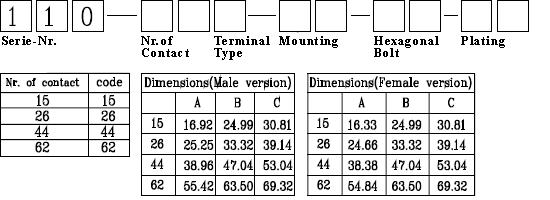

Serie-Nr. 110
Nr. of Contact
Terminal Type
Mounting option
Hexagonal Bolt Option
Plating Option
