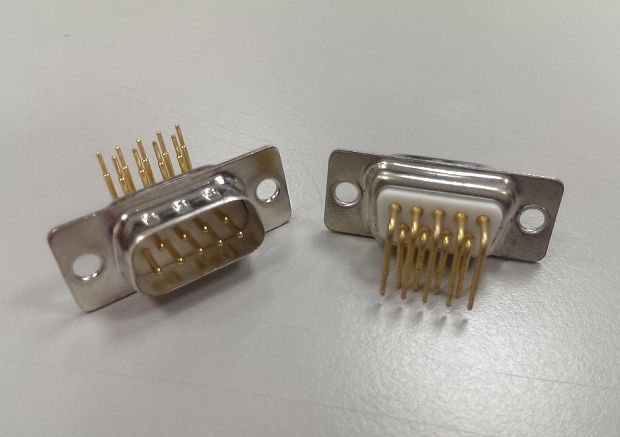

102 series D-Sub Dip Solder Type Right Angle

Technical data:
Material and finish:

shell: Steel tin coat over nickel
Insulator: Thermoplastic polyester   self-extinguishing rated 94V-0
Contact: Cooper alloy
Contact surface: gold plated over nickel
Operating Temperature: -55℃ to + 105℃
Electrical data:
Current rating: 5A

Contact resistance: 30Mohm  Max. at DC 100MA
Test voltage: 1000V/50hz
Insulator resistance: 1000Mohm min. at  DC 500V
Voltage: AC  1000V for 1 minute
