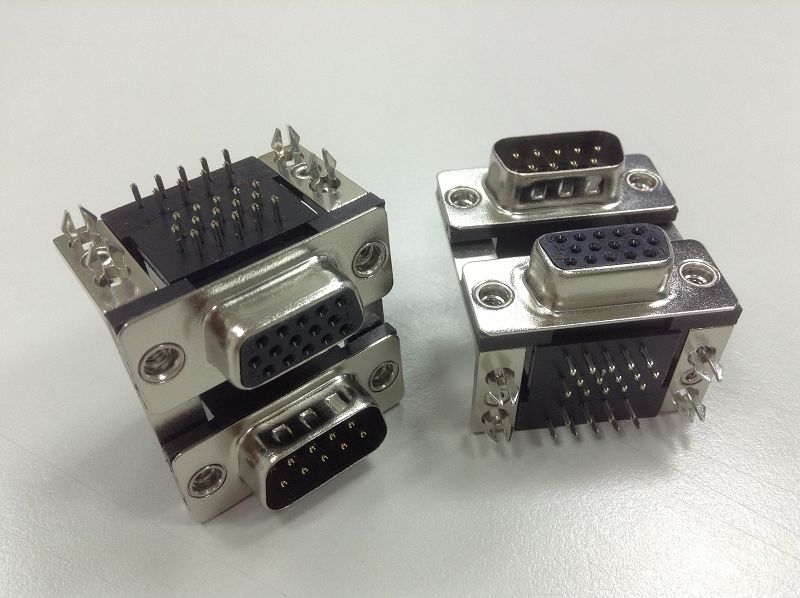

386 series D-Sub Dual Port Connector

Technical data:

Shell: Steel  material, tin finish
Insulator: PBT Thermoplastic, 30% glass filled, UL 94V-0 Rated, Black color
Contact material: Brass or phosphor bronze
Contact finish: selective gold flash

Grounding bracket: Brass material, nickel finish

Contant Current rating: 5.0 AMPS

Contact resistance: 30Mohm  Max.

Dielaectric withstanding  voltage: 500 VAC MIN

Insulator resistance: 1000Mohm min.

Temperature Rating: -55℃ to + 105℃
