• 1686A series D-sub socket connectors with press- fit

    Technical data:

    Specifications

    Contact resistance: 30Mohm  max. at DC 100mA

    Insulator resistance: 1000Mohm min. at DC 500V

    Current rating: 5 AMPS

    Dielaectric withstanding

    Voltage:  AC 1000V for 1 minute

    Operating Temperature: -55℃ to + 105℃

    Contact :  phosphor bronze

    Housing: Nylon 6T   UL  94-0V



    View customer Drawing (Pdf)

1686A series D-sub socket connectors with press- fit

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

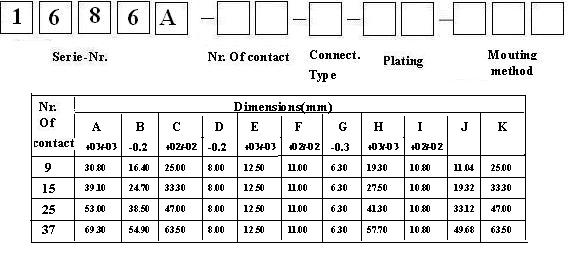

Series-Nr. 1686A
Nr. of contact
Connector type 2: Female connector with press-fit
Plating
Mouting method
