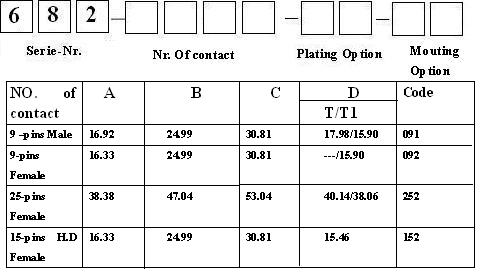

682 series Right Angle D-Sub SMT Type

Technical data:

Shell: Steel  material, tin finish and indentations (Dimples) on Plug Only

Bracket: Brass strip-H tin plated

Sctew:Brass nickel plated
Insulator: Standard -  PBT Thermoplastic,Black Color, 30% glass filled,  94V-0 Rated

                   Reflow Compatible -  High Temperature Thermoplastic Black Color 30% Glass Filled,

                                                       94V-0 Rated

Contact Retention: Precision Machined Contact 10 Lbs   ,    Precision  Formed 10 Lbs
Contact Separation Force: 4 oz. Min

Contact Engagement  Force:  9 oz. Max

Durability:  500 Insertion Cysles Min   ,

1000 Insertion Cysles  Min with Nominal  Machined Contact Pins

Rated Current: 5A

Rated Voltage: 300V  DC

Withstanding Voltage: 500V(r.m.s) AC for 1d minute

Insulator resistance:  more than 1000Mohm at 500v DC

Contact resistance: 13Mohm  Max
