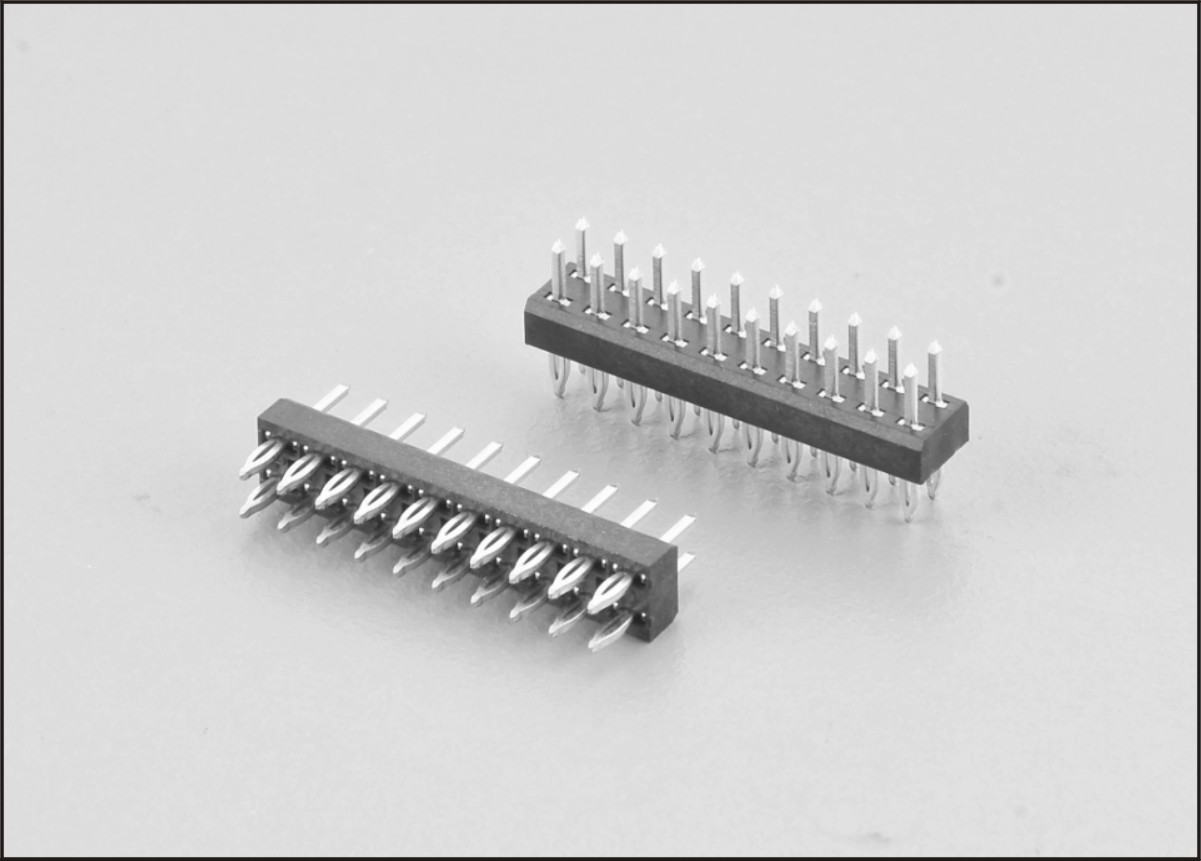

314PF series Pin-Header-Press-fit Double Row-2.00mm Pitch

Technical Data:

Insulator Material:  High Temperature   Thermoplastic,UL 94V-0

Contact Material:  copper alloy

Plating:  Au or Sn over Nickel

Current Rating:  1 Amp

Insulator resistance:  500 Megohms min.

Dielectric withstanding:  AC 500V for 1 Minute

Operating Temperature: –40°C to +105°C

Max. processing Temp:   230°C for 30-60 seconds.  260°C for 10 seconds.
