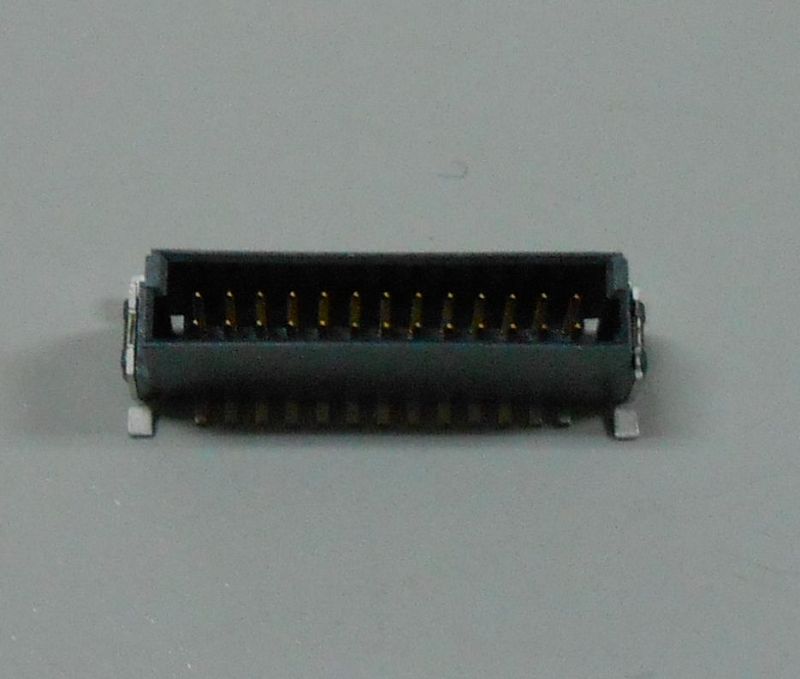

915 series - SMC Connector - 1.27mm Pitch Connectors,Male,Vertical SMT Type

Technical data:

Insulator Material: High Temperature      Thermoplastic,LCP,UL 94V-0.

Contact Material: Stamped and formed,Phosphor Bronze

Clip Material: Stamped and formed,Brass

Contact Plating: Au or PdNi+Au over Nickel

Clip Plating: Matt Sn over Nickel

Air-and creepage distance: 0.4mm

Insulator resistance: 10000 Megohms min.

Dielectric withstanding: AC 500V for 1 Minute.

Operating Temperature: -55℃ to +125℃.

Max. processing Temp: 230℃ for 30-60 seconds.    260℃ for 10 seconds.

Mates with: 912,913
